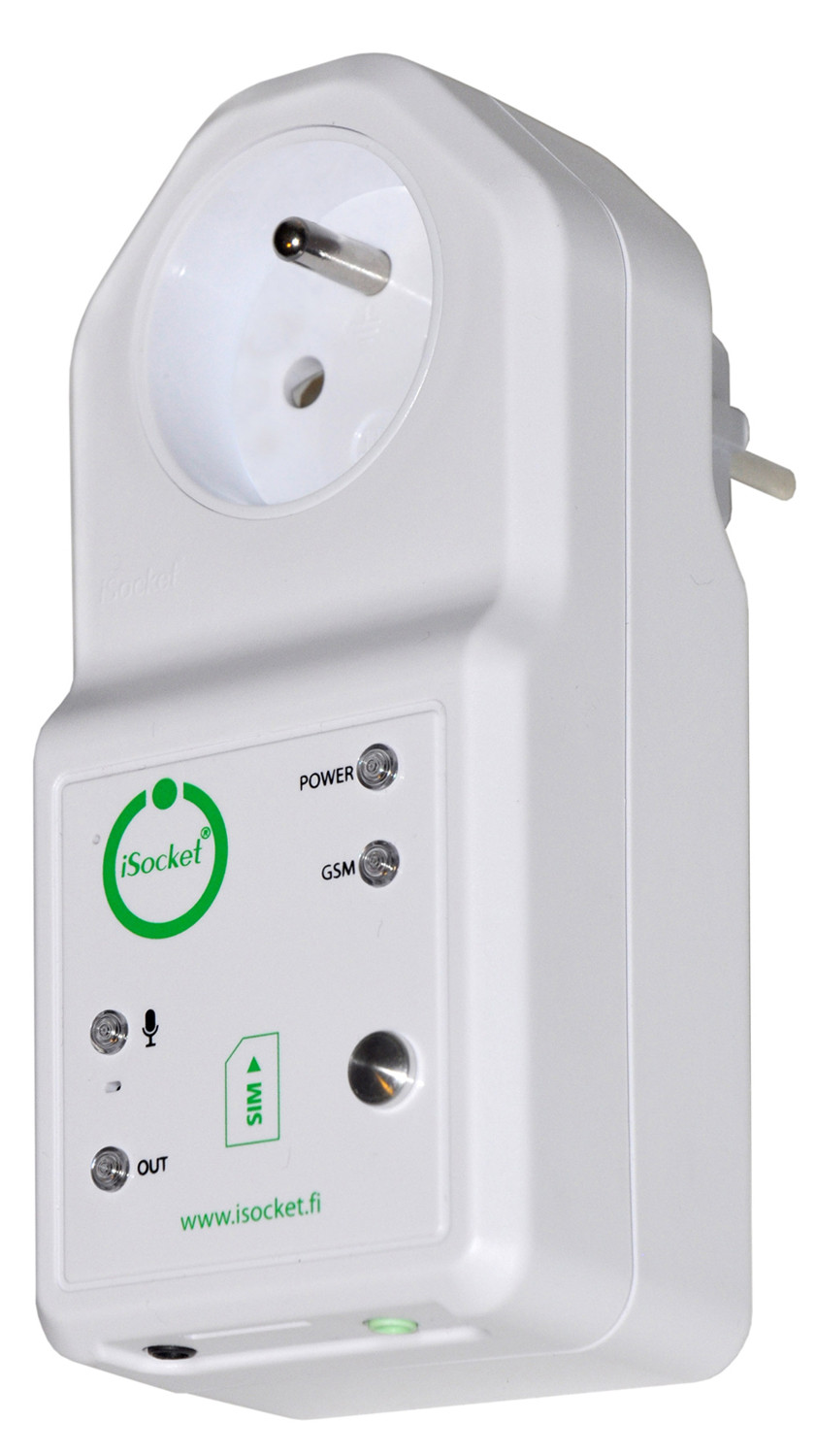

Français iSocket GSM 706
4-in-1: home alarm system GSM, remote power on/off, temperature monitoring, remote sound monitoring
iSocket GSM 706 is designed to switch electrical equipment remotely and has some additional useful features. This smart gsm socket is controlled via the GSM network using standard mobile phone SMS-commands. It is also possible to activate operations by a phone call. SIM-cards from different GSM-operators - including prepaid cards - can be installed in iSocket GSM 706. iSocket GSM 706 can also be used as a thermostat because of its built-in thermometer, which controls the turning on and off of equipment according to your settings. iSocket GSM 706 sends information about the temperature in the room to your phone. With a special connector, you can connect the various sensors. A message will be sent when it is triggered. For example, it can indicate motion, doors opening, fire, gas leakage and more. A built-in microphone allows you to hear what is happening in the room, remotely. Additional output can trigger low-voltage equipment, such as alarm horn.
This product was discontinued. Since 2021 we offer Plug-and-Go iSocket with integrated connectivity - buy here
Données techniques
- iSocket GSM 706
- ISGSM706FR
- CEE 7/5, French
(with notification to your mobile phone)
- Home alarm system
- Remote temperature control system
- Remote on/off reboot system
- Gas leakage alarm
- Burglar alarm
- Smoke or fire detection alarm
- Temperature fall/rise alerts system
- Motion detect alarm
- Door opening alarm
- iSocket® Temperature Notifier - notifies you in the event of the room temperature falling below or rising above critical levels
- Thermometer: temperature measurement
- Thermostat: turn on/off equipment by thermostat's settings
- 110-240VAC, 50-60Hz
- Stand-by power ~1W, Green Power
- Remote turn on/off or restart of 120VAC/240VAC appliances
- Delayed start/stop, turn on/off for a certain period
- Scheduling turn on/off
- Max. switching rating 16A at 250VAC, protected with fuse
- Max. rating 4000W (16A at 250VAC); continuous resistive load
- Nominal rating 3600W
- Max. switching 24VDC/2A, no fuse, 3.5mm mini-jack at the rear of device, GREEN color
- Remote turn on/off of appliances up to 24VDC by sms or call
- Mini-jack 3.5mm connector on the rear of the device
- Unit provide 12VDC / 300mA; PTC resettable fuse 350mA
- Support logical 12VDC sensors: motion sensor, door opening detector, smoke detector, water sensor, etc.
- iSocket® Alarm Notifier – a feature which send alerts to your phone when external sensors was activated
- With adjustable calibration value to match your environment
- Factory default calibration value: 12, which means 12C (54F)
- Remote sound monitoring of a room in your absence
- Calibration of sensitive with software
- Scheduling some functions to be executed at a particular time
- Scheduling turn on/off relay
- Scheduling sending status information
- Scheduling sending temperature information
- Scheduling activation/deactivation of Alarm Function
- Three security levels: password, list of phone numbers, limited configuration interval
- Support several security numbers to limit acces to management and configuration
- Unique feature of iSocket® Smart Software which allow you to perform some operations, e.g. remote switching or reboot, absolutely free (no fee for a call or SMS)
- No service fee to manufacturer or dealer
- 4-band worldwide GSM 850MHz/900MHz/1800MHz/1900MHz
- iSocket® Online 24/7 - gets the device back online even after a break in the mobile network
- Automatic date and time synchronization from mobile network
- Integrated
- Push-push type, plug-in SIM card 1.8V/3V
- Standard full size
- GSM contract or prepaid (PAYG) SIM-cards
- For manual switching of main relay and for reset to factory defaults
- POWER green
- GSM blue
- MICROPHONE yellow
- OUT red
- SMS control and configuration with traditional "old" phones
- Management through apps for smart phones
- Indoor use, dry conditions
- 0C – +30C (32F – 86F) *According to certifications (official range)
- -15C – +40C (5F – 104F) *According to experience
- -30C – +50C (-22F – 122F)
- CE mark
- 1 year (for some countries 2 or 3 years)
- Designed and manufactured in Finland
